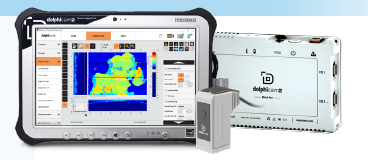

The dolphicam2 is capable of high-resolution imaging and precise measurements for a wide range of material types including composites, metals and multi materials.

With a straightforward, quick to deploy, user-friendly system, technicians of all experience levels can generate analysis-ready images of materials in

real time for quick decision making.

1.Black Box and Rugged Tablet

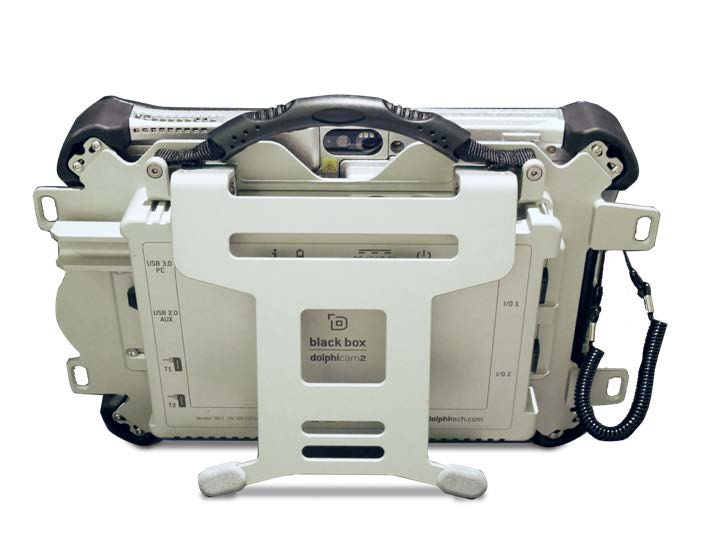

The dolphicam2 consists of a rugged 10” Panasonic Toughpad FZ-G1 tablet computer with a combined table stand and Black Box mounting bracket on its rear.

Kick stand allowing you to prop your device at almost any angle that’s convenient for you.

Features

Ergonomic & mobile

Can connect to external PC Audio buzzer

Bluetooth

Wi-Fi

Camera

The Toughpad has a daylight-readable display with gloved-multitouch and waterproof digitizer pen.

The Black Box and Toughpad are joined by a sturdy metal frame. The whole system is reinforced to withstand daily site use. Self contained lightweight and portable and comes in a self- contained ruggedized pelicase

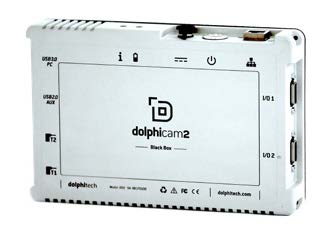

The Black Box itself is the heart of the system, driving the TRM while connecting to the Toughpad which runs and displays the software.

The unit has been tested to withstand drops from 1.3 meters. It has IP66 ingress protection and long battery life (6-8 hours in normal use).

The Toughpad is equipped with an Intel i5 CPU, 8GB of RAM and a 256GB SSD.

2.Software

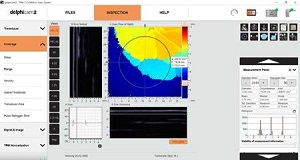

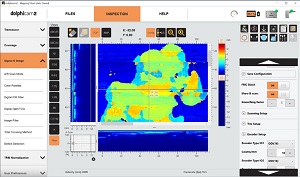

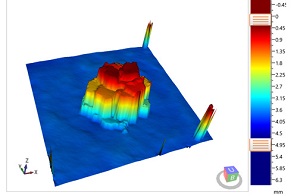

The dolphicam2 software is unique among NDT packages, designed from the ground up to complement the imaging capabilities of the platform (including Live C-scans). Ultrasonic images are shown not just using conventional signal amplitudes, but also as time of flight, opening up a world of instant, color-coded thickness mapping. This is helped further by the live 3D characterization view, which instantly enhance visualization and can be readily interpreted by different levels of end-users.

2.1 Features

Live 1 Axis & 2 Axis Encoded Mapping Grid and free hand stitching Configuration setting files

Full Matrix Capture (FMC)

Total Focusing Method (TFM)

TCG Functionality

Digital Time Corrected Gain (TCG) Report configuration

Defect Detection

Histogram Statistical Data Graph

2.2 Measurements

? Depth B-scan

? Line in C-scan

? Depth & Amplitude in C-scan

? Rectangle (Width, Height, Area)

? Circle (Diameter, Circumference Area)

2.3 Views

? A-scan

? B-scan (vertical/horizontal, TFM)

? C-scan (Amplitude, ToF)

? 3D (ToF & Amp)

? Stitch view
